PIPE＆TUBE CUTTERS
For cutting plastic pipe, plastic surface raceway, interior finish work, handicraft timber and bamboo.
For cutting polyvinyl chloride plastic, polyethylene pipes and moles.
Part number
PIP19 (Standard type)
PIP20 (Heavy-duty type)
PIP7Z (Slim type)

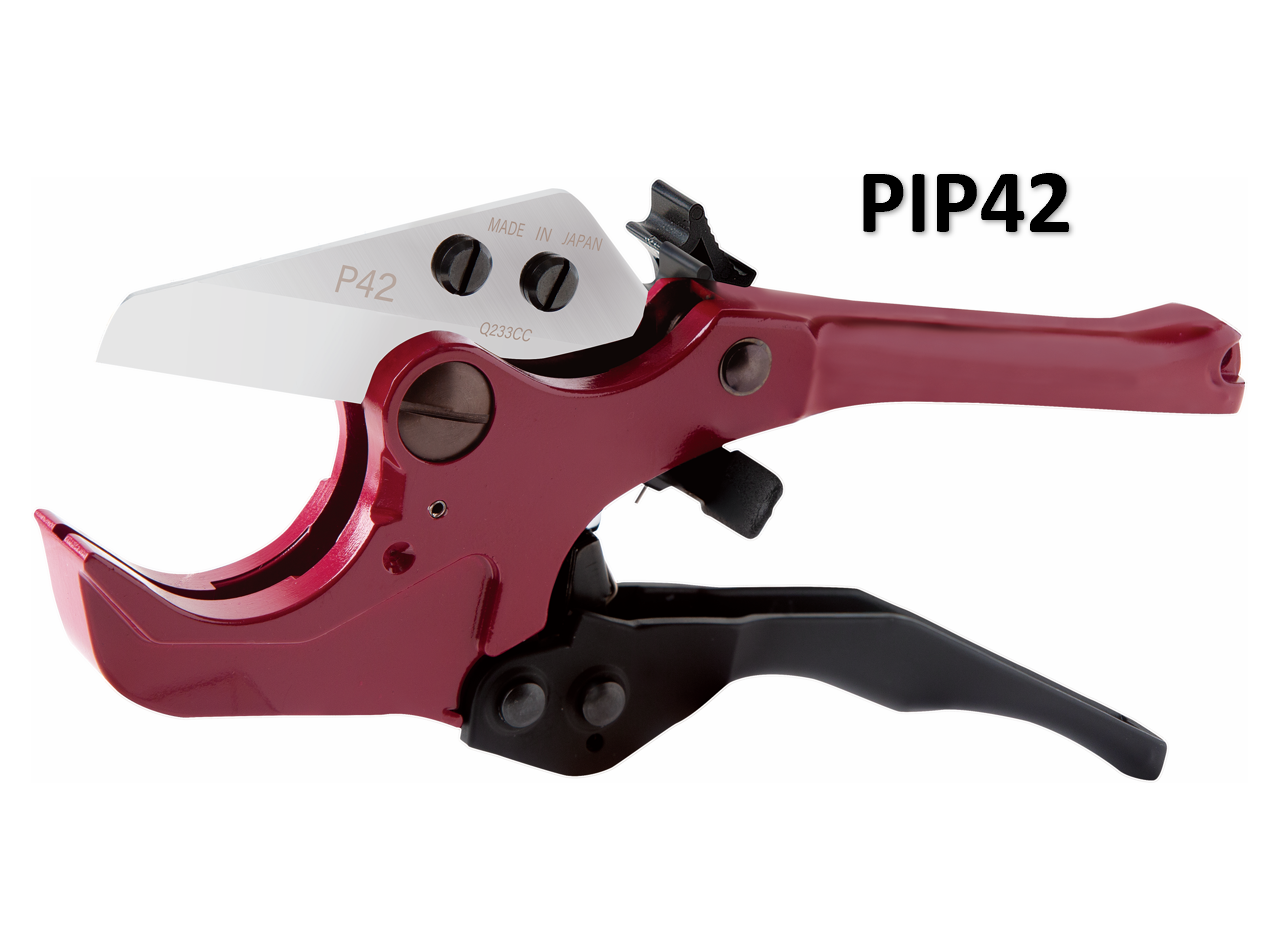

PIP42 (Easy operation type)
Feature
One hand operation for cutting plastic pipes.
Possible to cut plastic surface raceway at any desired angle with an attachment installed. (for PIP19 /PIP42)
Blade can be locked with Stopper when off-work for security. (for PIP42)
Blade-opening by pushing Release Lever down. (for PIP42)
Cutting capacity:
[PIP19 /PIP42]φ42mm (Standard vinyl pipe VP30, Water pipe VW30, Electric wiring pipe VE36.)
[PIP7Z]φ26mm (Standard vinyl pipe VP20, Water pipe VW20, Electric wiring pipe VE22.)
[PIP20]φ63mm (Standard vinyl pipe VP50, Water pipe VW50, Electric wiring pipe VE54.)
Blade type:
[P18Z] for PIP19.
[P42] for PIP42.
[P7] for PIP7Z.
[P20] for PIP20.
Overall length:
[PIP19]217mm.
[PIP42]220mm.
[PIP7Z]185mm.
[PIP20]325mm.
Please see the PDF catalog for details. (size, weight etc.)
