MERRY BRAND

PLASTIC NIPPERS

Plastic nipper is a tool to cut gate of molded resin products.

Part number

160S (high-plastic nippers / round type blade)

160SF (high-plastic nippers / flat type blade)

160SA (high-plastic nippers / angle type blade)

160FW (high-plastic nippers / extra thin blade)

66S (plastic nippers)

99 / 99S / 99SF (heavy-duty plastic nippers)

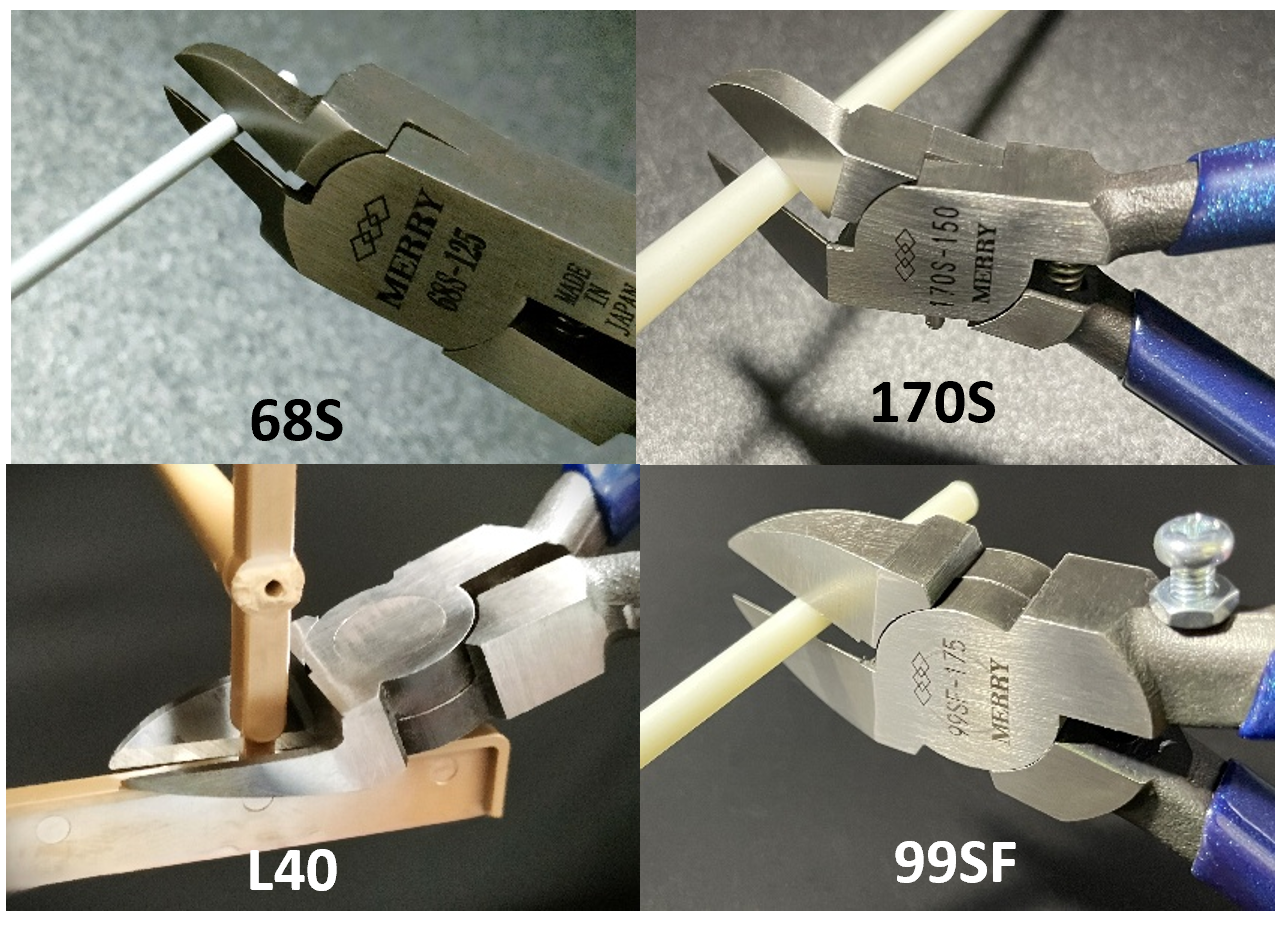

170S (angled plastic nippers)

WA1000F (compound action plastic nippers)

68S (narrow nose plastic nippers)

PG20 (pin gate plastic nippers)

2000EF / 23EF / 24EF / 25EF /26EF (end cutting plastic nippers)

550SF (angle cutting plastic nippers)

L40 (long handle plastic nippers)

M11 / M12 (miniature plastic cutting nippers)

Feature

for nearly flush cutting of moulded plastic components from sprues.
with opening spring.

Cutting capacity:

[160S-125 / 160SF-125 / 160SA-125] φ3mm.

[160S-150 / 160SF-150 / 160SA-150] φ5mm.

[M11 / M12] φ3mm.

[160FW-125] φ2mm.

[160FW-150] φ4mm.

[66S-150] φ5mm.

[99-150 / 99S-150 / 99SF-150] φ8mm.

[99-175 / 99S-175 / 99SF-175] φ9mm.

[99-200 / 99S-200 / 99SF-200] φ10mm.

[170S-150] φ5mm.

[WA1000F] φ5mm.

[68S-125] φ2mm.

[PG20-125] φ1mm.

[2000EF / 23EF / 24EF / 25EF / 26EF] φ3mm.

[550SF-125] φ3mm.

[550SF-150] φ5mm.

[L40-190] φ5mm.

[M11 / M12] φ3mm.

Please see the PDF catalog for details. (size, weight etc.)
