HEAT NIPPERS (FOR CUTTING PLASTICS)
Cutting heat nippers are heated for easy cutting.

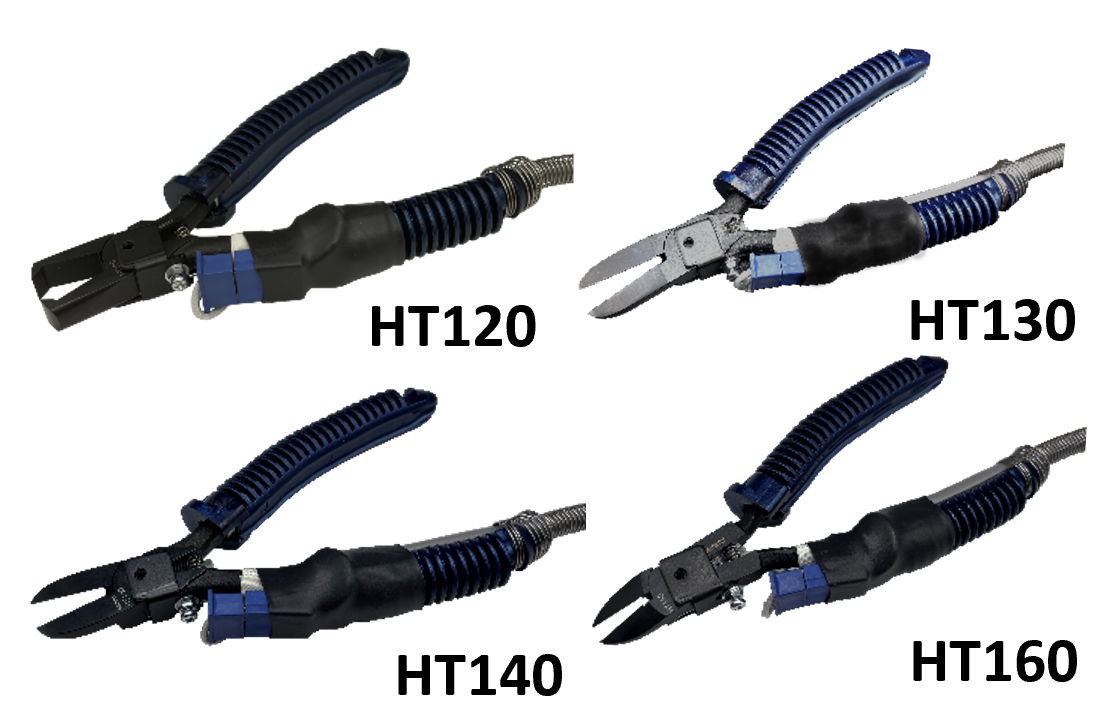

Part number

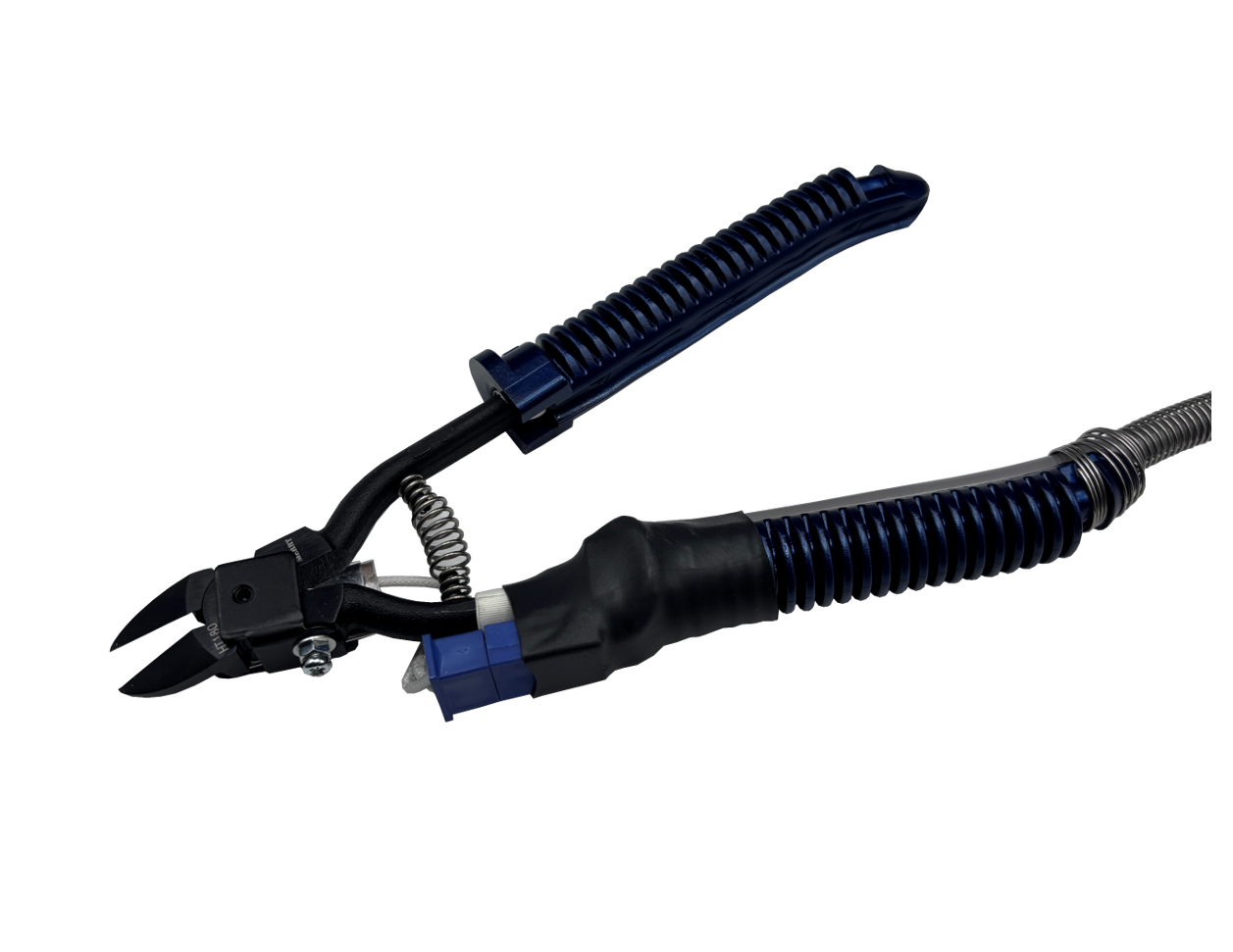

HT180 (Standard type)

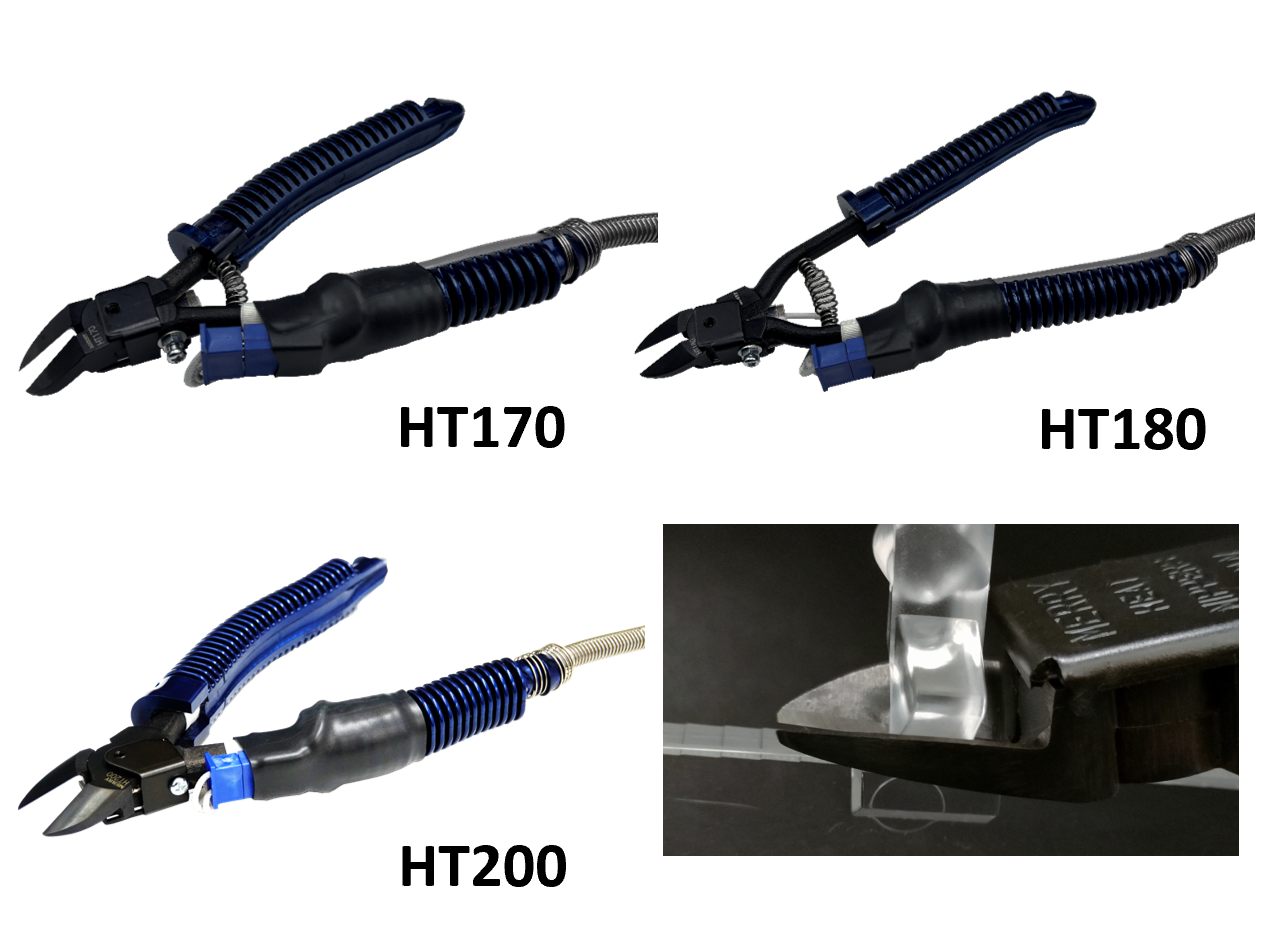

HT200 (Heavy-duty type)

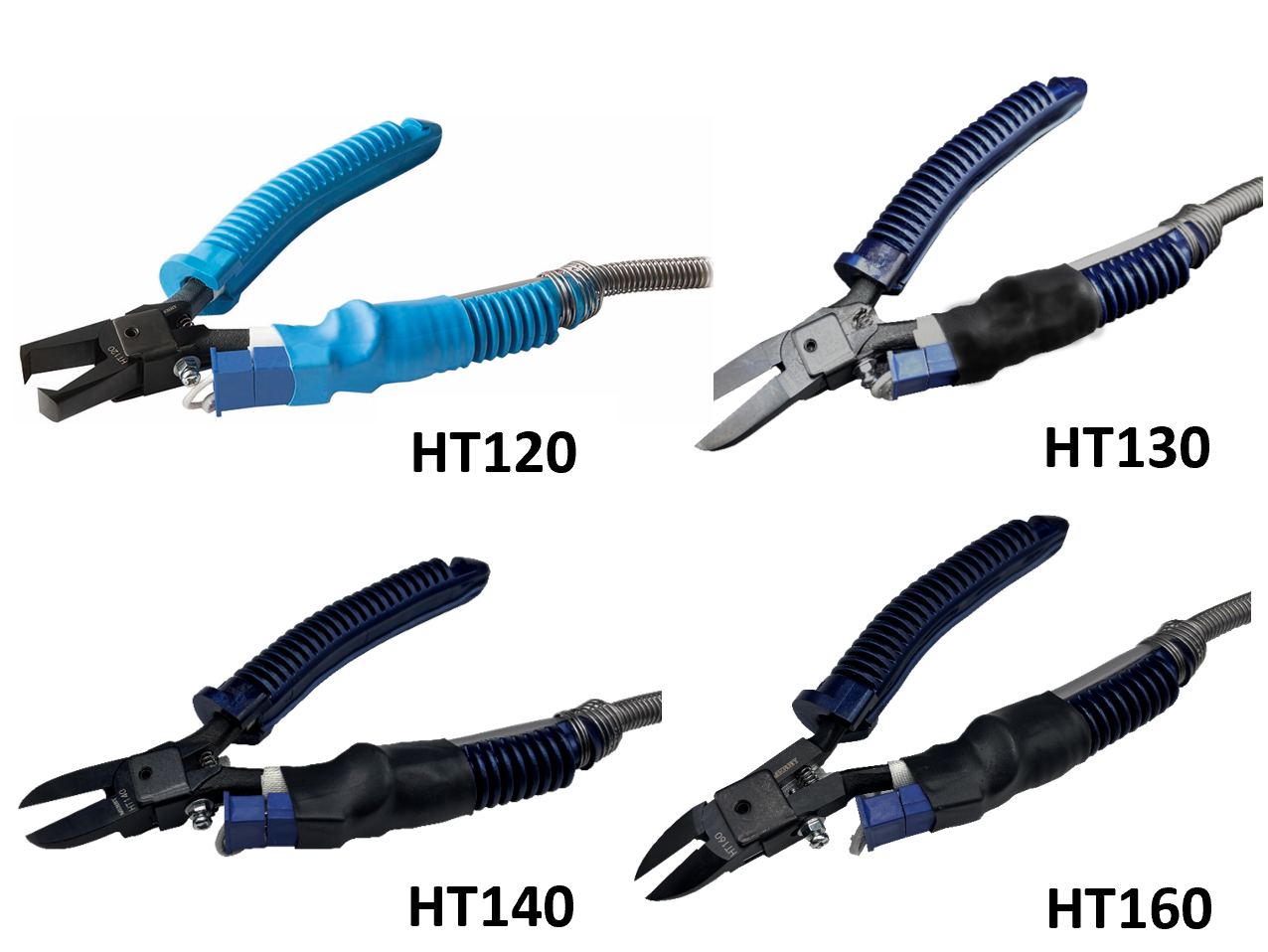

HT120 (End cutting type)
HT130 (Long blade type)
HT140 (Flat blade type)
HT160 (for cutting narrow spaces)
HT170 (Angle blade type)
HT180DX (Standard type / with sensor)
Feature
The built-in heater warms the blade edges for easier, crack-free cutting of fragile materials such as acrylics, styrene plastic, and glass resins.
These Heat nippers must be used with suitable transformer.
Spring loaded.
Cutting capacity:
[HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT180DX]φ4mm.
[HT200]φ7mm.
Heater type:
[W19] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT180DX.
[W29] for HT200.
Transformer type:
[TRF25-100V] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT200.
[TRF25-220V] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT200.
[TRF25-240V] for HT180 /HT120 /HT130 /HT140 /HT160 /HT170 /HT200.
[TRF100D] for HT180DX.
Step-Down Transformer type:
[HDT100] for TRF25-100V .
Please see the PDF catalog for details. (size, weight etc.)
